PET/VMPET/NYLON/PE is a lamination film or bag that comes with a four-layer lamination structure consisting of PET, Vapor Metalized Polyethylene Terephthalate, NYLON, and PE. It is our line of Vapor Metalized polyethylene Terephthalate (VMPET) or Mylar films combined with NYLON to offset any form of packaging difficulties.

The versatile nature of our packaging films and our position as a supplier makes it a unique choice for both industrial or FDA applications as it is free of toxins such as TSE, Sulfur, Phthalates, and BPA. It is specifically designed to maintain the fresh texture of FDA Food Items like dried goods, snacks & chips, pet food (cats, birds, and all kinds of dog breeds), and its low thermal permeability rate, as well as the UV resistance, makes it an ideal choice as a pouch for bird seeds, fertilizers, detergents and many more products.

Barrier Properties

PET/VMPET/PE + NYLON is a great four-layer structure. The synthesized nylon in this material helps with both moisture barrier and strength. Its reinforcement effect on the material is a good choice for powders, granulated items, or heavy bag uses. A great substitute for plastic bags; reach out to us, a premium supplier, today.

Note: The performance of any film will be influenced by a number of factors and testing must always be performed to ensure the film meets the use.

Relative Performance Indications

Oxygen Barrier

Moisture Barrier

Light Barrier

STrength

Heat Resistance

Freezer Storage

Customer Profile

PET/VMPET/NY/PE was a good candidate for this use.

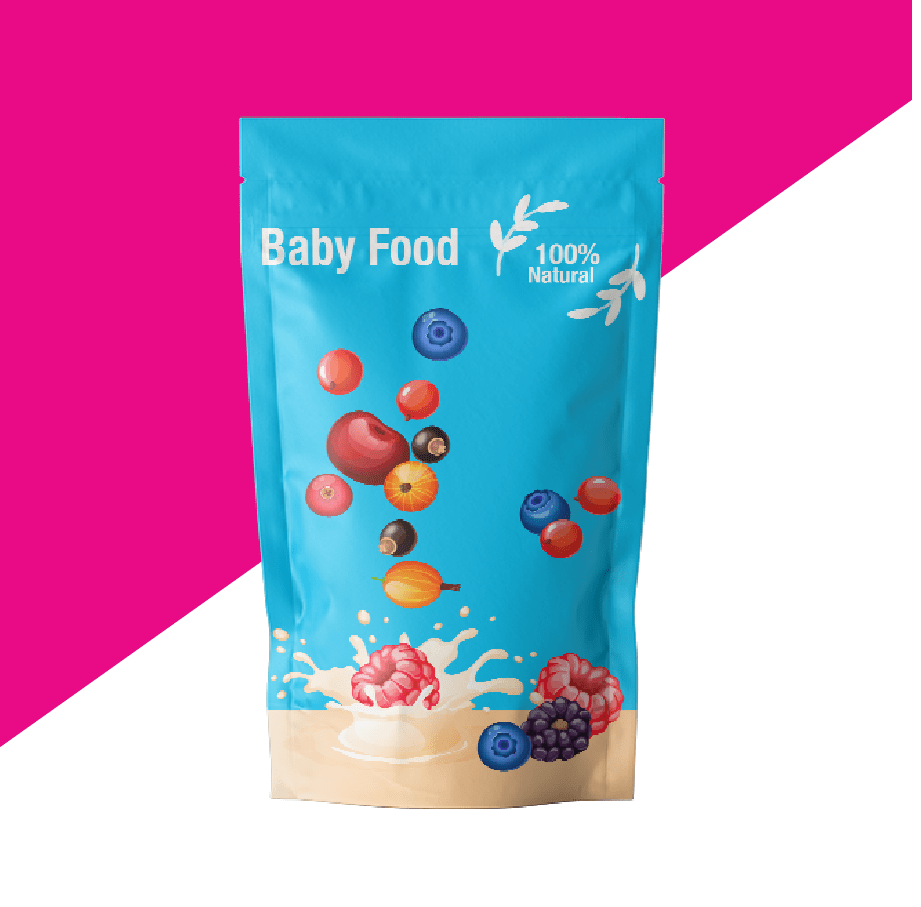

Pouches design Art 19 CareSilver-PVNP (PET/VMPET/NYLON/PE)

Heavy granular and powdered products such as fertilizer and protein powders can benefit from the use of this lamination structure. Dried powdered milk products, and freeze dried foods are great uses for this film.



Film Specifications for CareSilver-PVNP

Our lamination film is finely coated with vaporized Aluminum film (AL) to provide an opaque base material for printing while enhancing the barrier properties of the base polymer film.

Here are some of the common indicated properties for this film

Property
Sample Data

Available Thicknesses

4mil - 8mil

Sample Data Thickness

4mil

MVTR

<0.25 JIS Z 0208

OTR

<0.5 JIS Z 1707

Side Seal Strength

>6.0

Elongation at Break

>50 AST D 882

Bond Strength

PET/VMPET >400g/15mm VMPET/NY/PE >600g/15mm

Compressive Strength

> 785 JIS Z 0238

Heat Seal Range F

Enter your text here...

The enhancement of PET/NYlON/PE with Vapor Metallized of VMPET or Mylar provides an higher resistance layer on the film with the same thickness while keeping it flexible for the packaging of your products such as snacks & chips, cookies & candies. Mylar lamination enhances its barrier property against moisture and oxygen while maintaining the freshness of your packaged product, hence, making it the best pouch, and flexible barrier bag option.


VMPET film also provides an opaque surface that improves contrast, color fidelity, and printing quality which invariably attract customers to your product. Your colors will be more vibrant and not have a washed out look that printing on clear base materials can have. Meaning you don't have to worry about choosing one color and receiving a package in a lighter or darker tone. It gives you the best printing quality as a result of the metalized layer material.

Environmental Impact of CareSilver-PVNP

This material is a multi-layer laminated plastic and will typically fall into the check-locally, or store drop off category. The product is not compostable. Request more info today.

icons eco 20 CareSilver-PVNP (PET/VMPET/NYLON/PE)

At Home Compost

icons eco 20 CareSilver-PVNP (PET/VMPET/NYLON/PE)

  Industrial Compost

icons eco 19 CareSilver-PVNP (PET/VMPET/NYLON/PE)

    Recyclability

ECO 09 1 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Select Columns Layout

Compliance Information of our Packaging Film Roll

Compliance is always an important topic. All our films including our CareSilver-PVNP PET/VMPET/NY/PE film meets or exceeds applicable compliance and regulatory standards.

small Icons 18 33 CareSilver-PVNP (PET/VMPET/NYLON/PE)

Kosher

logos 24 CareSilver-PVNP (PET/VMPET/NYLON/PE)

BPA FREE

logos 29 CareSilver-PVNP (PET/VMPET/NYLON/PE)

FDA Food Approved

small Icons 18 32 CareSilver-PVNP (PET/VMPET/NYLON/PE)

EU Food Approved

logos 26 CareSilver-PVNP (PET/VMPET/NYLON/PE)

PROP 65

logos 21 CareSilver-PVNP (PET/VMPET/NYLON/PE)

RoHS / R.E.A.C.H

Common Uses of Packaging Film PET

As a food supplier, here are some common uses of this film.

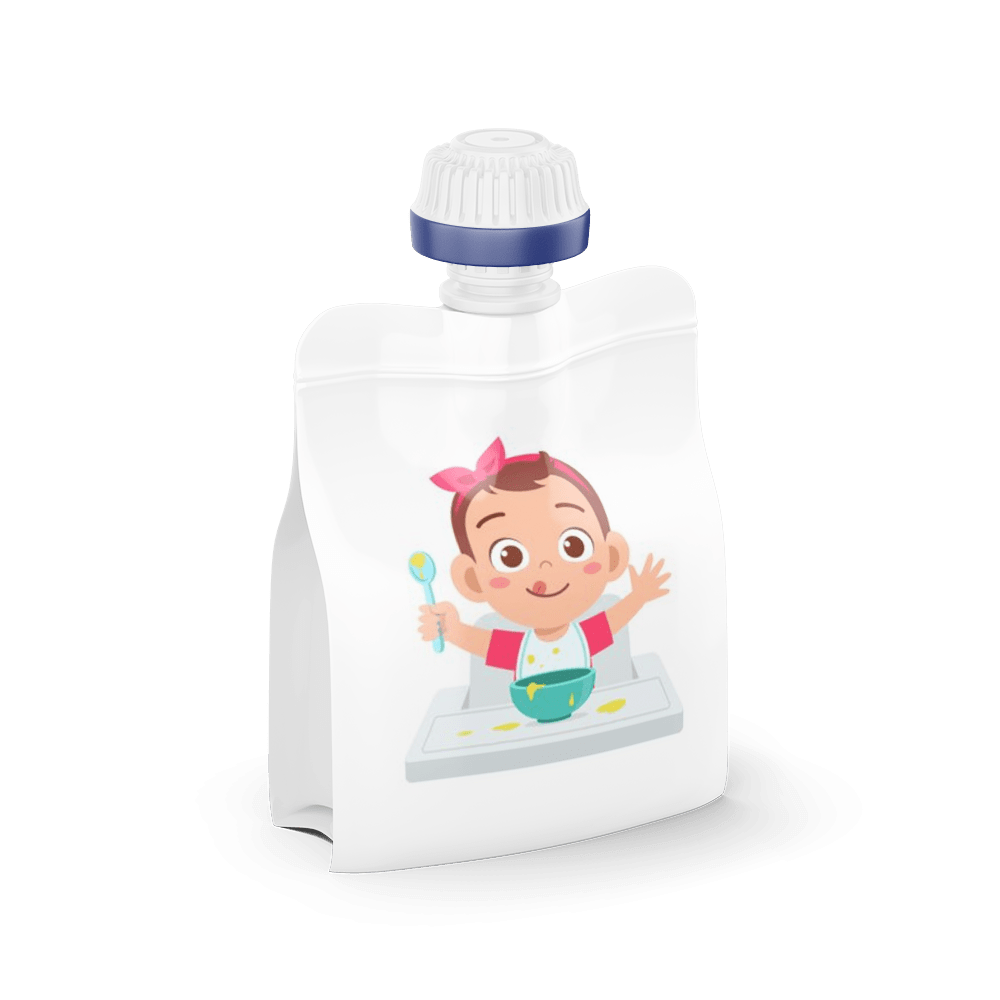

spout pouch box bottom CareSilver-PVNP (PET/VMPET/NYLON/PE)
Dairy Products
Baby Food, Yogurt, Shredded Cheese & Butter

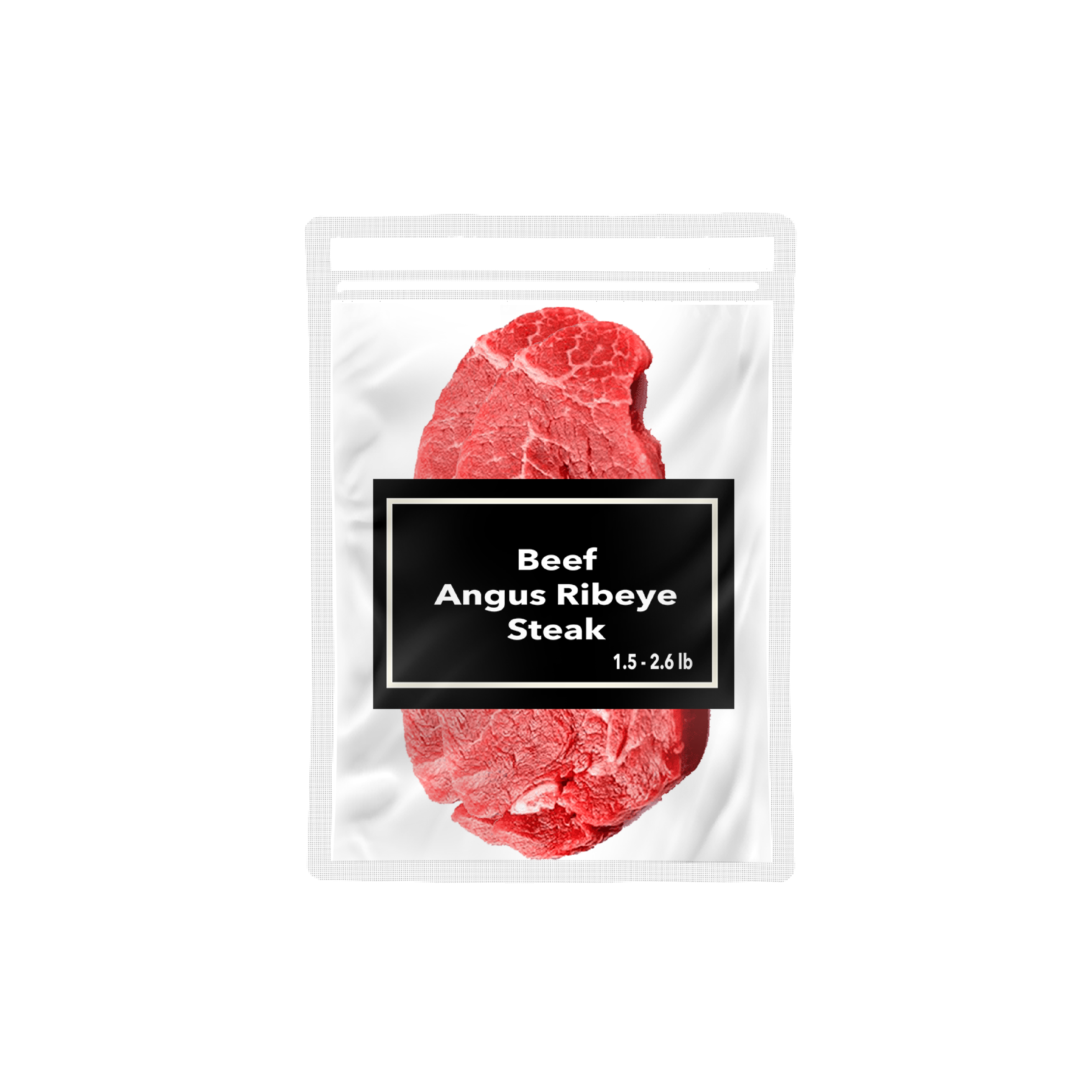

meat 1 01 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Forming and Non-Forming
Meat, Cheese, Sausages, Seafoods etc.

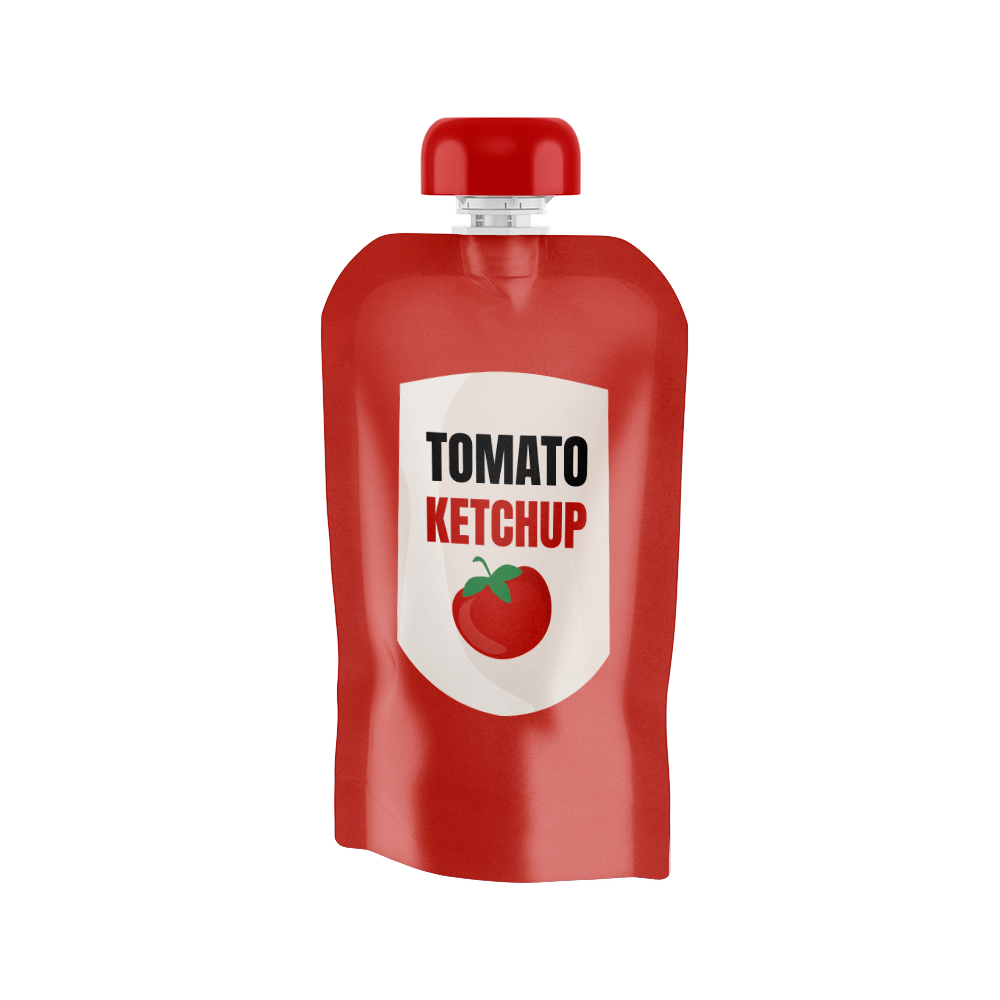

Spout Pouch Wide Cap CareSilver-PVNP (PET/VMPET/NYLON/PE)
Hot & Fill
Juice, Ketchup, Mayonnaise, Liquid Spices
Clear bags 1 01 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Frozen Foods
Vegetables, Seafoods, Meat, Block Cheese
fertilizer 01 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Agricultural
Plant Seeds and Plant Fertilizer

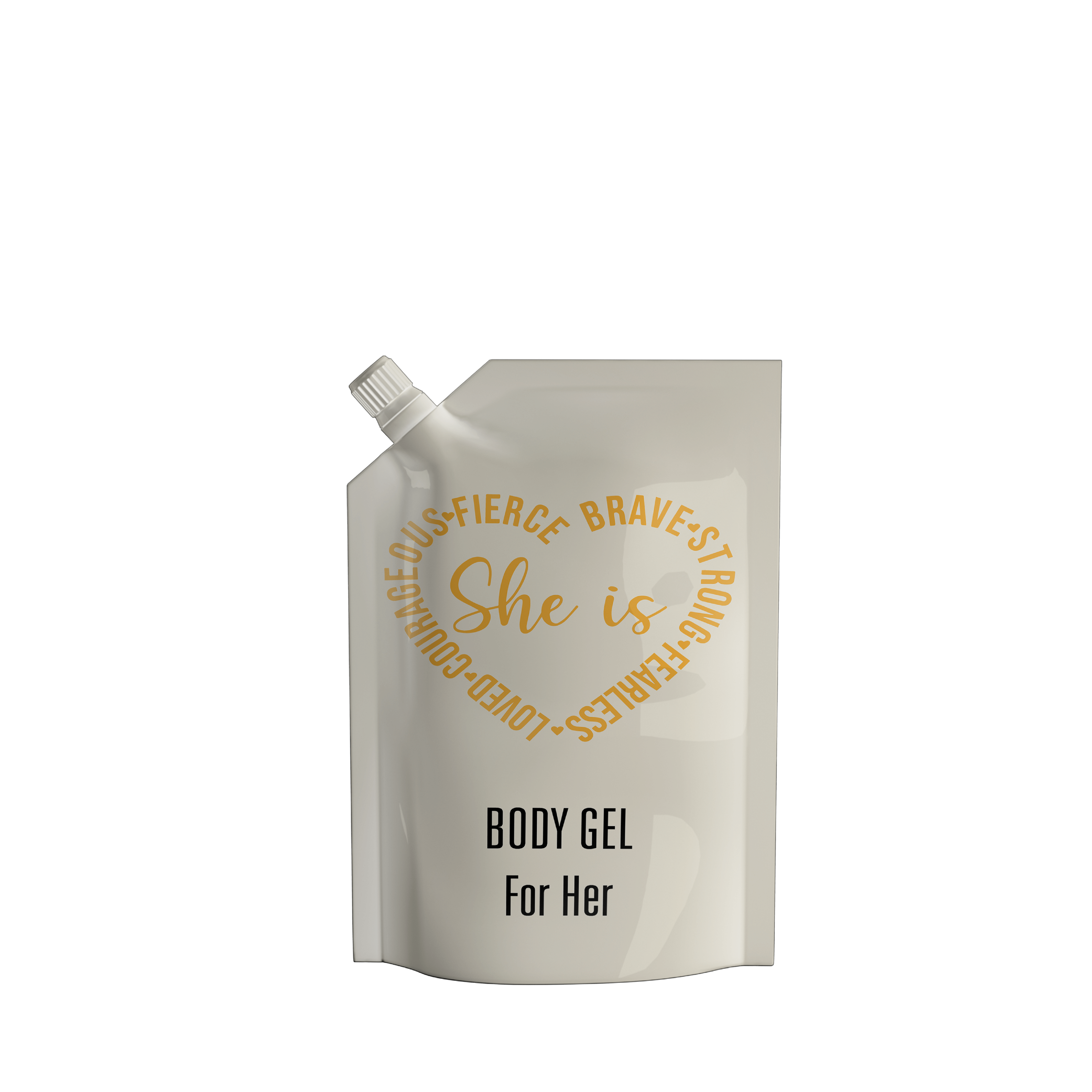

cosmetics 1 02 CareSilver-PVNP (PET/VMPET/NYLON/PE)

Spout Liquid Pouches

Baby Food, Gels, Refills

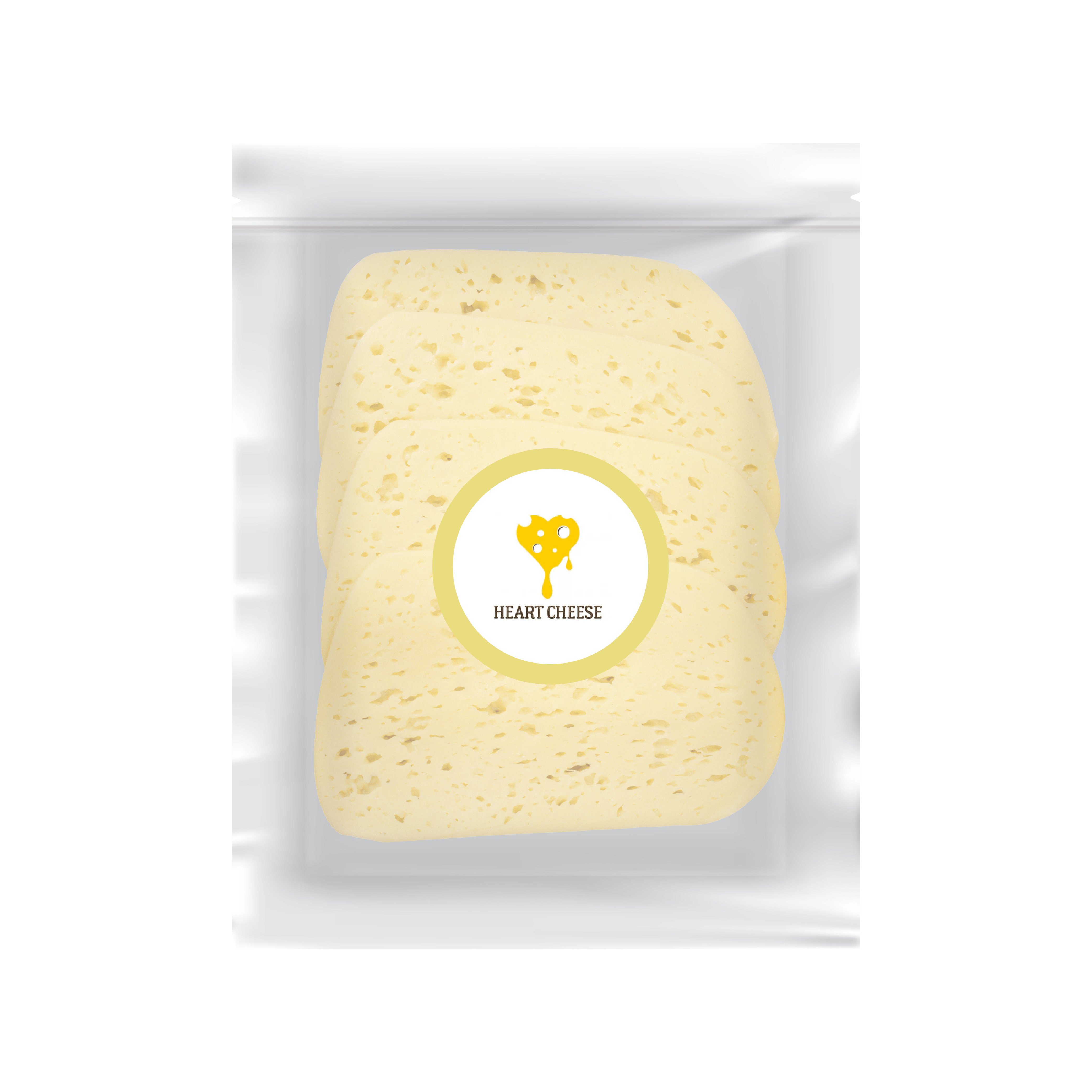

Cheese 1 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Vacuum Packaging
Meat, Cheese, Seafood, Dry Fruits
Spices 05 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Spices & Flour
Spices, Flour, Salt, Sugar, Rice, Papad, Baking Mix
dog treat 1 02 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Dog & Cat Food
Dog & Cat Food, Bird Seed, Livestock Feed
2 2 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Chemicals
Agro Chemicals, Detergent, Industrial Chemicals, Cement

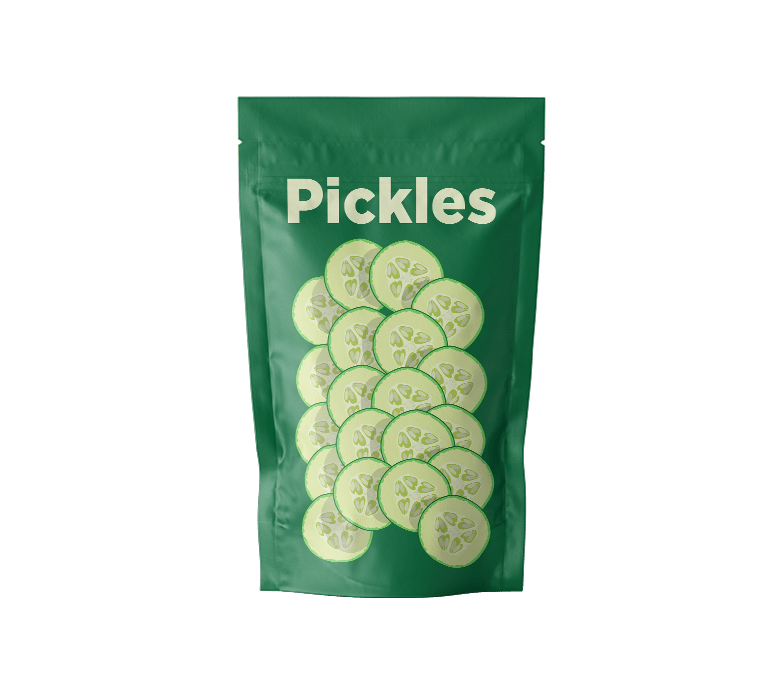

Stand Up Pouch CareSilver-PVNP (PET/VMPET/NYLON/PE)
Oils & Pickles
Cooking Oil, Pickles, Lubricant Industrial Oils
Supplements 1 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Powder Product
Protein Drinks, Milk Powder, Supplementary Powder
cosmetics 1 01 CareSilver-PVNP (PET/VMPET/NYLON/PE)
Personal Care
Incense Sticks, Cosmetics, Wet Wipes

Components of Plastic Roll Film

VMPET and PET

VMPET  is the Vapor Metalized form of Polyethylene Terephthalate (PET) or Polyester the gives VMPET/PET/NYLON/PE its unique characteristic as a packaging option. Polyester (PET) is a high-performance, crystal clear thermoplastic made from DMT (Dimethyl Terephthalate) and EG (Ethylene Glycol).  VMPET and PET is the ideal material for laminated packaging film or bags for quality printing and lamination as well as a good choice for high-performance plastic films. The two layers provide a glossy surface feature on the lamination layer and thereby providing a water-resistant surface that prevents penetration of water.

Nylon (Polyamides)

Nylon or Polyamides (PA) is a major high-performance engineering thermoplastics class because of its good balance of properties.

Nylon or PA is used because it is a substitute for low–strength metals in applications like automobile engines, and because of its high strength (relative to other plastics), high-temperature resilience, and high chemical compatibility.

POLYETHYLENE (PE)

Polyethylene or PE is a lightweight thermoplastic with a varying crystalline structure while exhibiting excellent durability properties. It is used for domestic and industrial applications ranging for pouches films, tubes, plastic parts, laminates, and so on, in numerous packaging options including Beverages, Meat, snacks &chips Fresh Products, Baked Goods, Frozen Foods dried food, etc.

Other Features

  • The mix of the four components; vapor metalized polyethylene terephthalate, PET, NYLON, and PE  results in packaging material with good temperature resistance properties, high tensile strength, chemical stability, low gas permeability, and UV light protection.

  • Our lamination film/bags goal is to preserve and protect your product while ensuring a long shelf life, even at an unbelievable cost as compared to other laminated film/bags options.

  • The Vapor Metalized PET (VMPET) adds a glossy surface feature on the lamination layer and thereby providing a water-resistant surface that prevents penetration of water.

  • Minimum Electrostatic Charge: charges that may be formed on the surface of the metal sheet are reflected. Hence, reduces the thermal effect and electrostatic charges development on the surface of the film. To create true ESD shielding requires specific configurations be combined with the material.

Related Materials

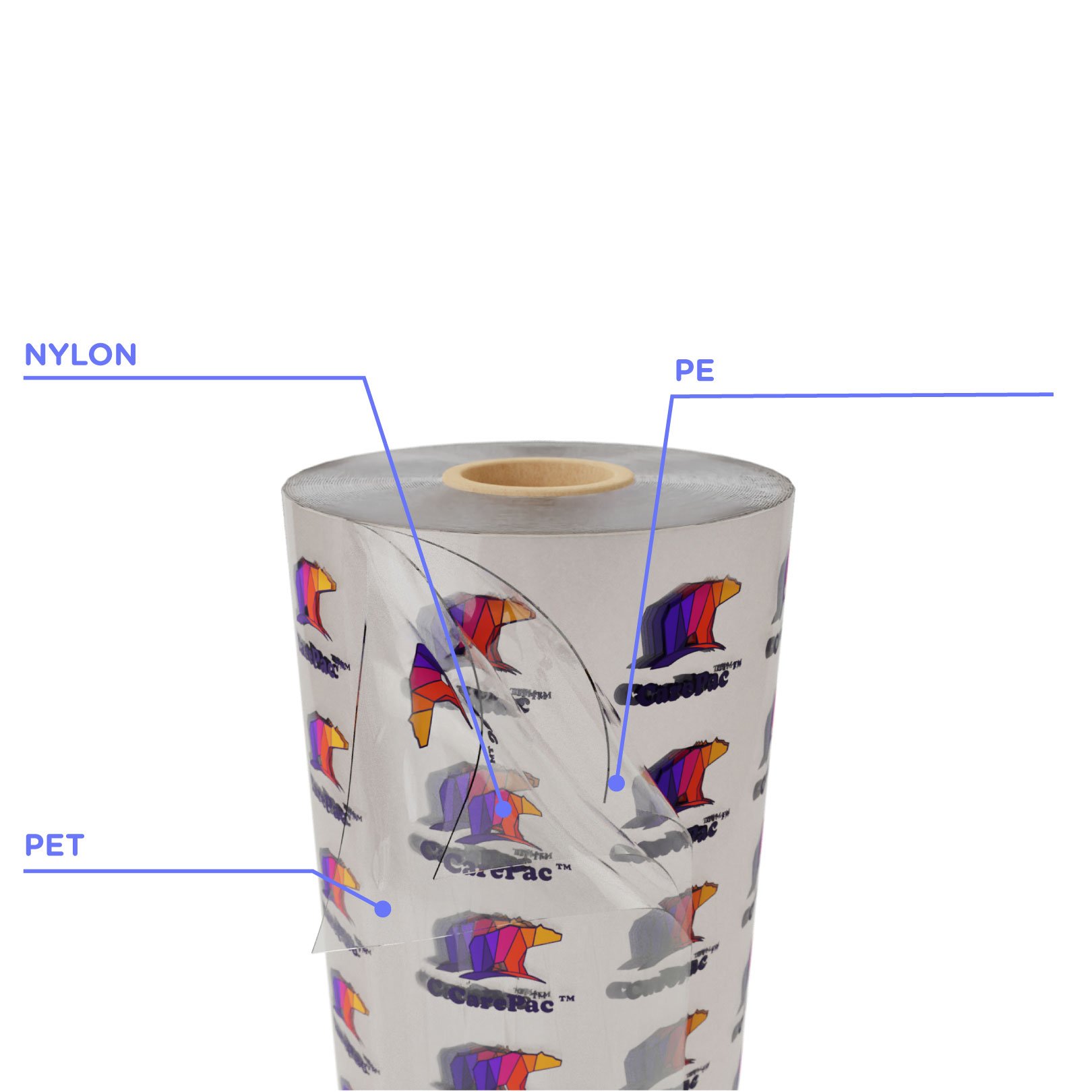

CareClear-PNP

CareClear-PNP (PET/NYLON/PE)

A high clarity  plastic roll film with increased strength through incorporating Nylon into the lamination structure.

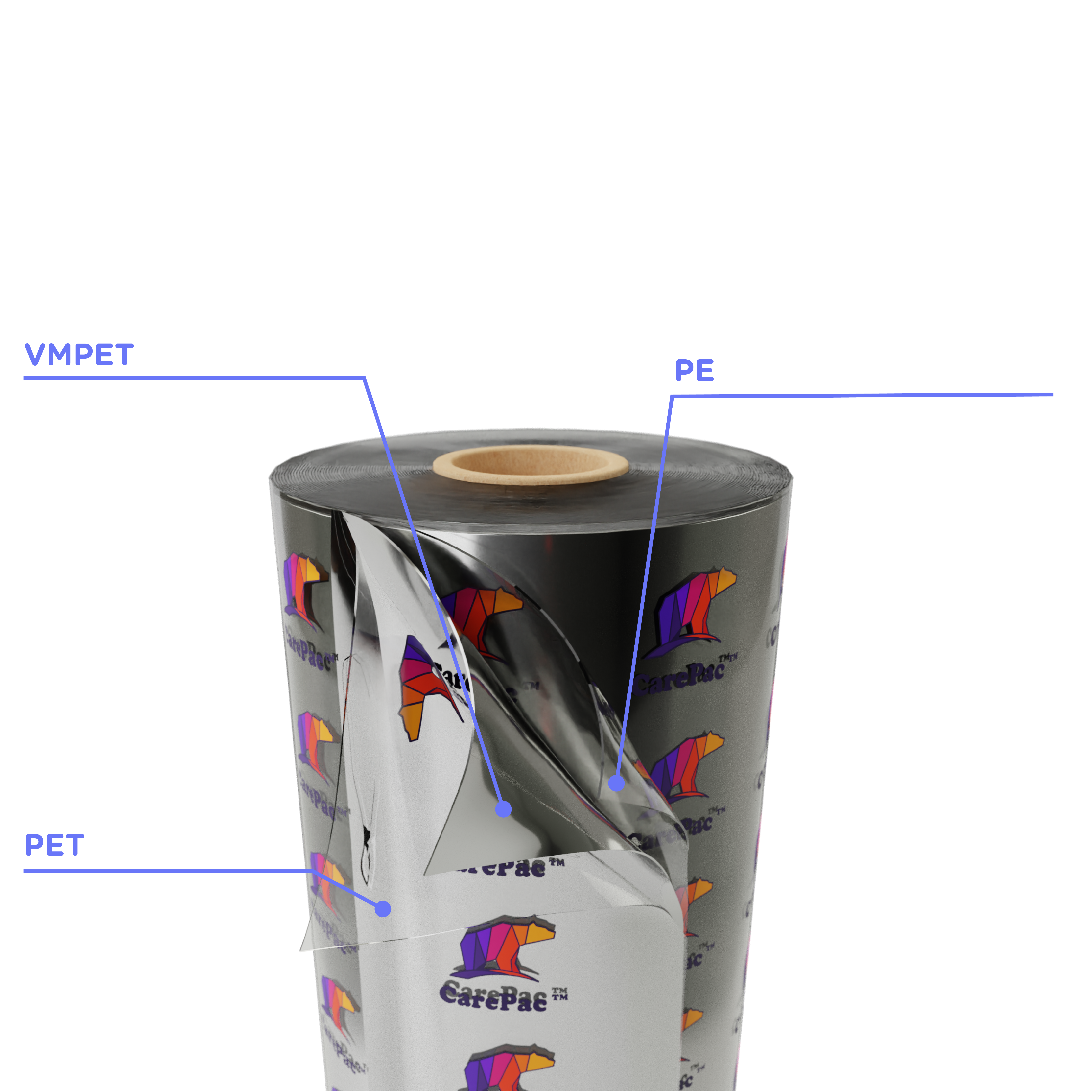

CareSilver PVP 01 01 CareSilver-PVNP (PET/VMPET/NYLON/PE)

CareSilver-PVP

When Nylon reinforcement is not required, CareSilver-PVP can provide a similar level of barrier and opaquaness.

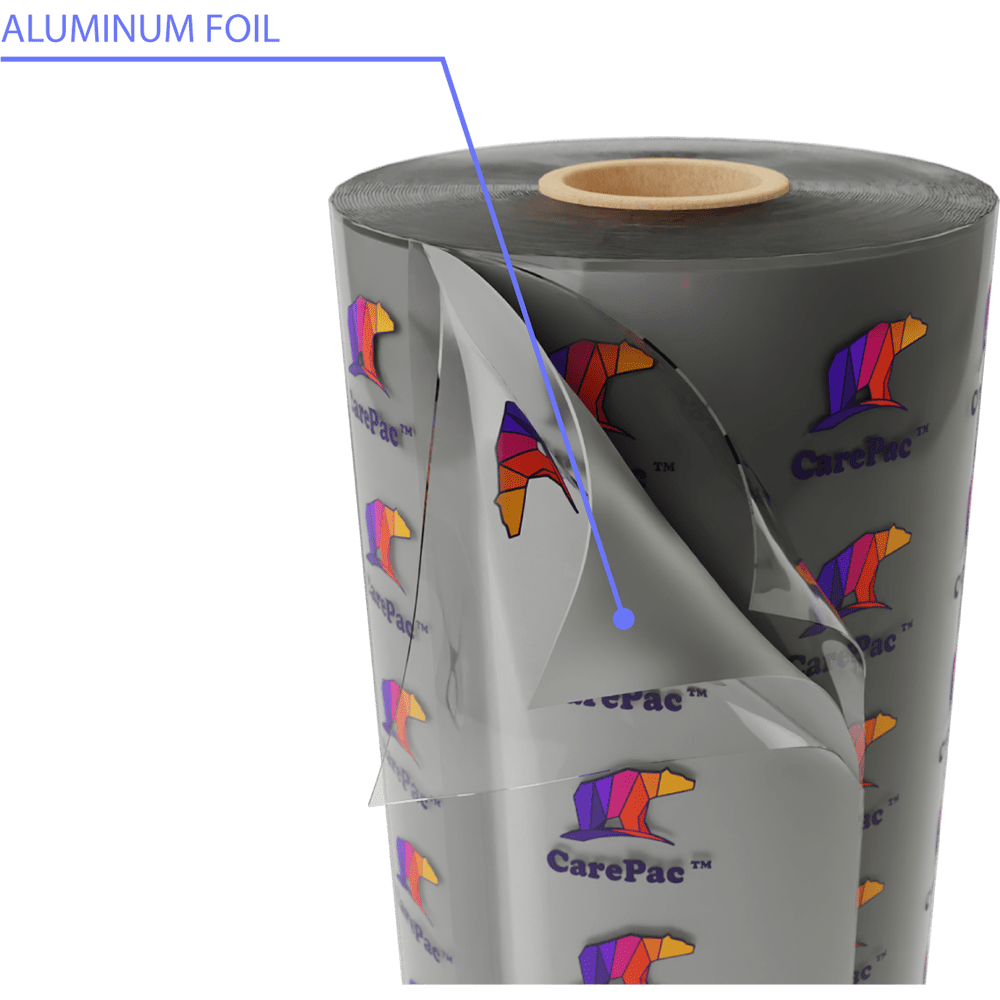

Foil

CareFoil PANP

For the ultimate level of barrier, CareFoil-PANP consists of a lamination that includes true aluminum foil into it's structure. Providing the ultimate in barrier for most consumer products and food items.
